Description
ENGINE: 2-Stroke, Single-Cylinder, Liquid-Cooled
DISPLACEMENT: 199.4cc
BORE × STROKE: 62.5mm x 65mm
STARTER: Electric and Kick
IGNITION: Electronic
GEARBOX: 6-Speed Gearbox with Multidisc Clutch in Oil Bath
CARBURETOR: Keihin PWK 36mm
INTAKE: Direct Reed Valve, VForce 4
SILENCER: Technigas Aluminum, Repackable
HANDLEBAR: 11/8″ Tapered Aluminum
FRAME: Central Backbone Chrome-Molybdenum with Aluminum Alloy Subframe
SWINGARM: Aluminum with Linkage System
FRONT FORK: KYB 46mm Open-Cartridge, 10.6″ Travel
REAR SHOCK: KYB. 10.6″ Travel. Adjustable Hi-Lo Compression and Rebound
FRONT RIM/TIRE: Aluminum 1.6 x 21 Spoke Rim, Vee Rubber 90/90-21
REAR RIM/TIRE: Aluminum 2.15 x 18 Spoke Rim, Vee Rubber 120/90-18
FRONT BRAKE: Braktec Caliper, NG Disk 260mm

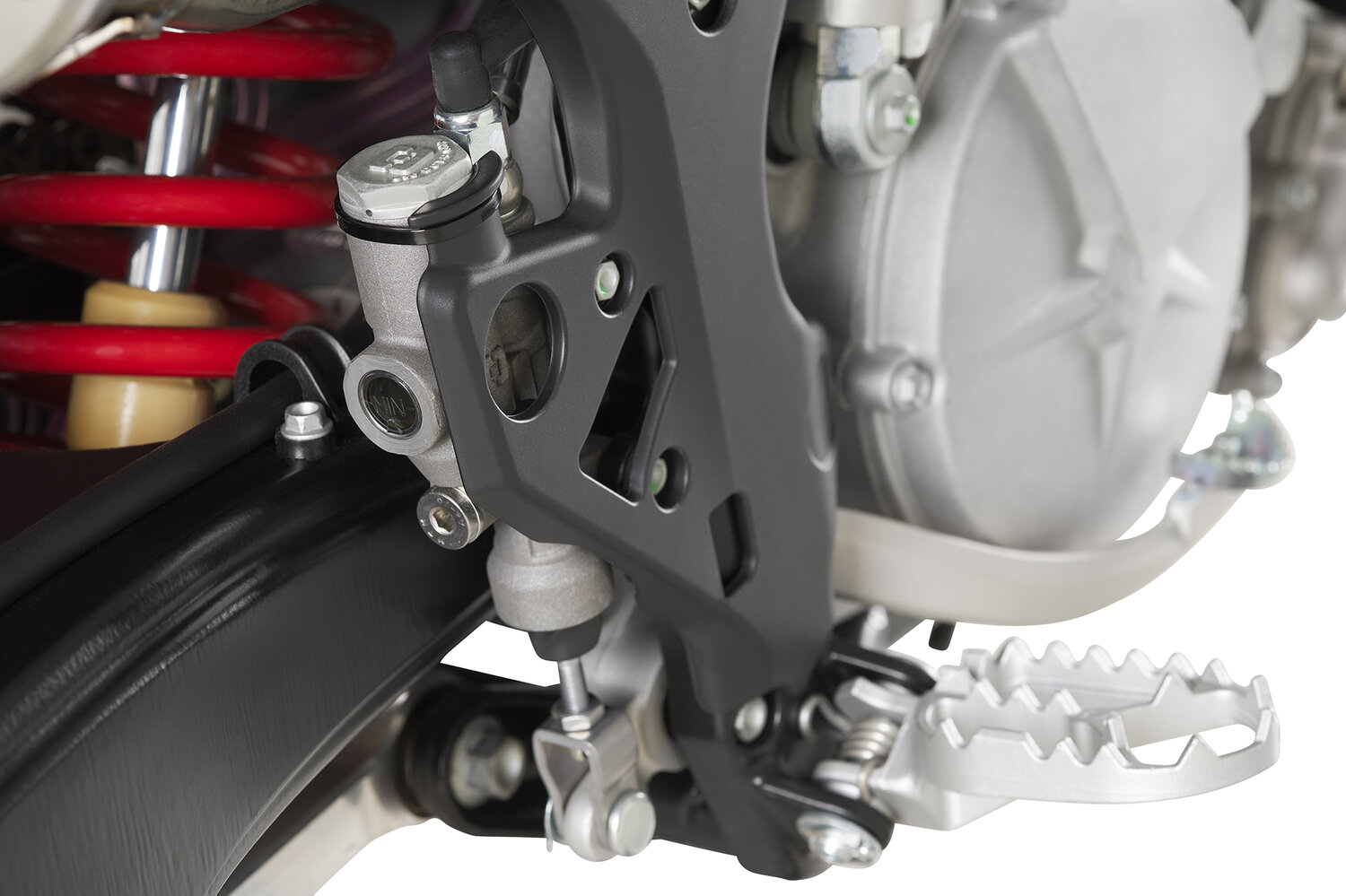

REAR BRAKE: Braktec Caliper, NG Disk 220mm
FUEL CAPACITY: 2.64 Gallons
DRY WEIGHT: 241 Pounds
DIMENSIONS: 84.4″ (L) x 31.9: (W) x 47.8″ (H)
WHEELBASE: 58.3″
SEAT HEIGHT: 36.3″
