Technical Details
Engine
- Primary drive29:72
- Transmission6-speed
- Battery capacity2 Ah
- CoolingLiquid cooled
- Secondary gear ratio14:48
- StarterElectric starter
- Stroke72 mm
- Bore95 mm
- ClutchWet, DDS multi-disc clutch, Brembo hydraulics
- Compression ratio12.75
- Displacement510.9 cm³
- EMSKeihin EMS
- Design1-cylinder, 4-stroke engine
- Fuel-mixture generationKeihin EFI, throttle body 42 mm
Chassis
- Weight (without fuel)116.2 kg
- Tank capacity (approx.)7.7 l
- Wheelbase1489 mm
- Front brake disc diameter260 mm
- Rear brake disc diameter220 mm
- Chain520 X-Ring
- Frame designCentral double-cradle-type 25CrMo4 steel
- Front suspensionWP XACT cartridge Ø 48 mm
- Ground clearance343 mm
- HandlebarPro Taper, Aluminium Ø 28/22 mm
- Rear suspensionWP XACT Monoshock with linkage
- Seat height952 mm
- SilencerAluminium
- Steering head angle63.9 °
- Rear subframe designAluminum-reinforced polyamide
- Suspension travel (front)300 mm
- Suspension travel (rear)300 mm
- Tyre dimensions (front/rear)90/90; 140/90
- Wheels1.60 x 21″; 2.15 x 18″
- WheelsSpoked wheels with aluminium rims
- Wheelbase1489 ± 10 mm

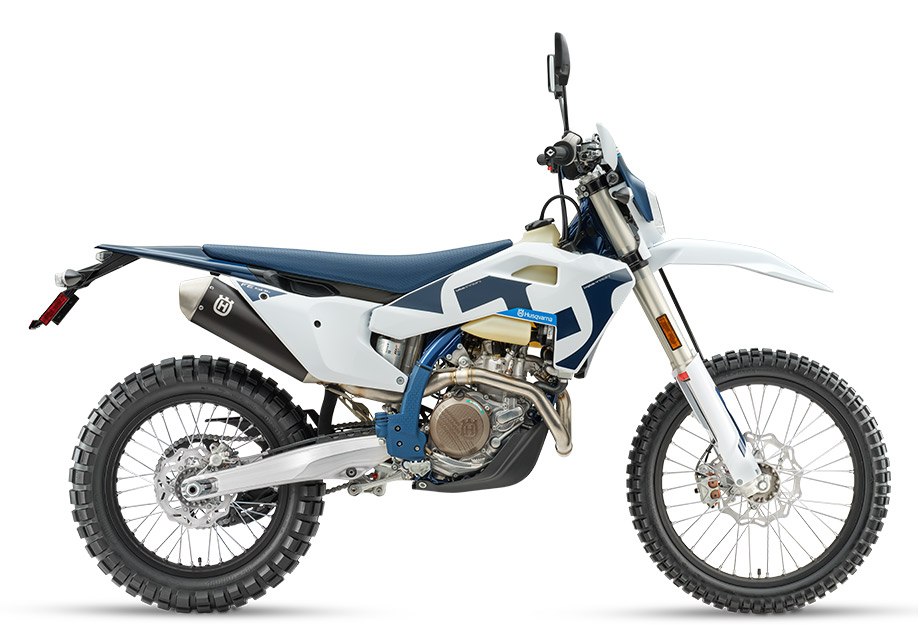

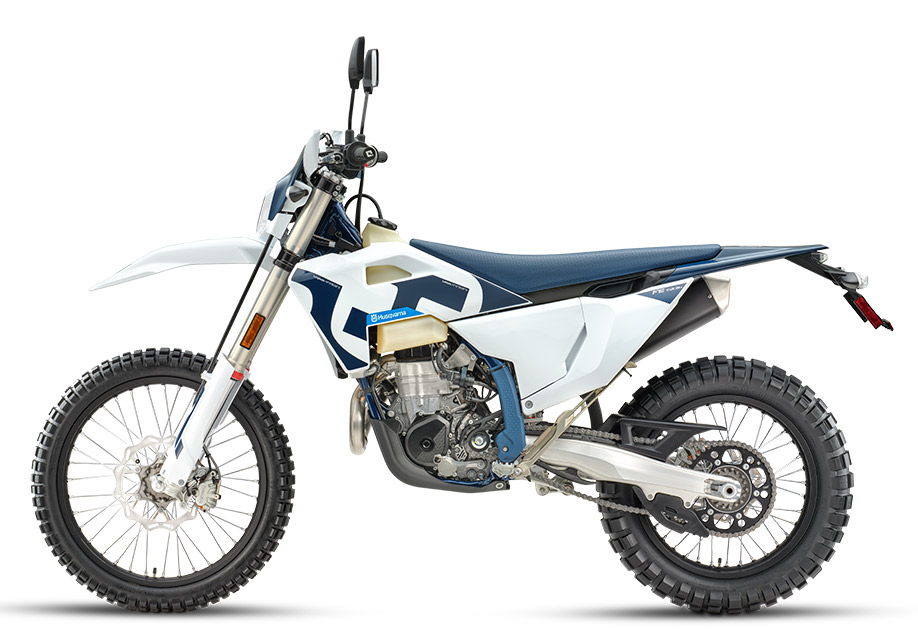

The 2024 Husqvarna FE 501S is the latest technology and premium components ensure the FE 501s offers a riding experience like nothing else. Advanced electronics tame the most powerful machine in the dual-sport line-up with the FE 501s delivering a broad spread of controllable power. Inside the engine, the shaft arrangements are positioned at the ideal centre of gravity to vastly benefit manoeuvrability, which is complemented further by the perfectly balanced chassis and WP XACT suspension. Expertly assembled with high-quality components throughout, the FE 501s is finished with functional bodywork adorned with new graphics inspired by the Swedish heritage of the brand.
