Chassis
- Weight (without fuel)100 kg
- Tank capacity (approx.)8.5 l
- Wheelbase1489 mm
- Front brake disc diameter260 mm
- Rear brake disc diameter220 mm
- Chain520 X-Ring
- Frame designCentral double-cradle-type 25CrMo4 steel

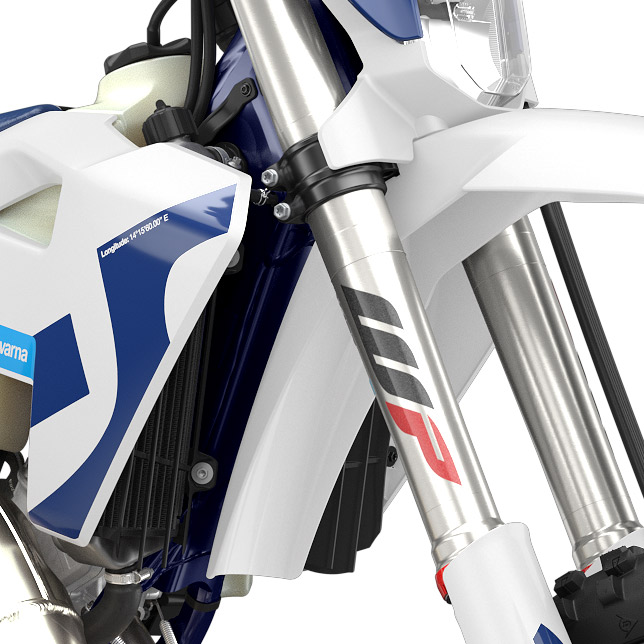

- Front suspensionWP XACT cartridge Ø 48 mm
- Ground clearance359 mm
- HandlebarPro Taper, Aluminium Ø 28/22 mm
- Rear suspensionWP XACT Monoshock with linkage
- Seat height952 mm
- SilencerAluminium
- Steering head angle63.9 °
- Rear subframe designAluminum-reinforced polyamide
- Suspension travel (front)300 mm
- Suspension travel (rear)300 mm
- Tyre dimensions (front/rear)80/100; 110/100

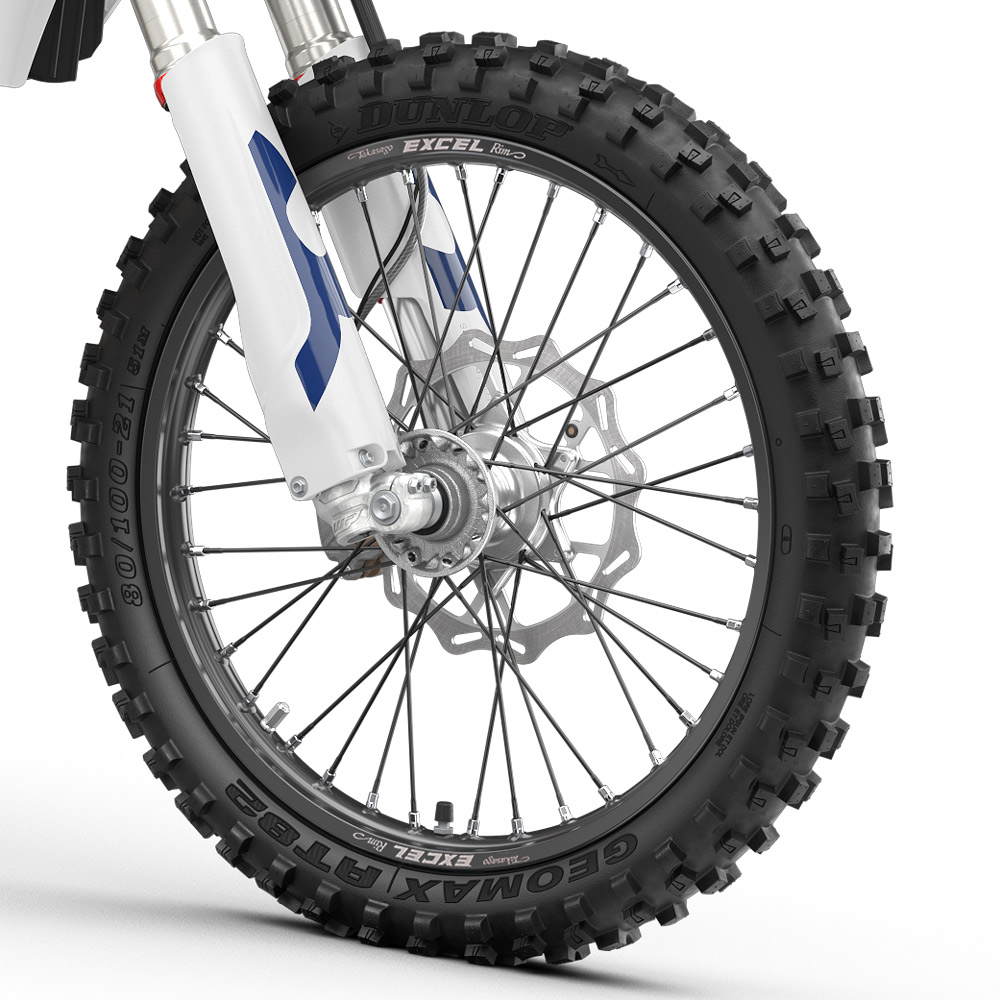

- Wheels1.60 x 21″; 2.15 x 18″
- WheelsSpoked wheels with aluminium rims
- Wheelbase1489 ± 10 mm

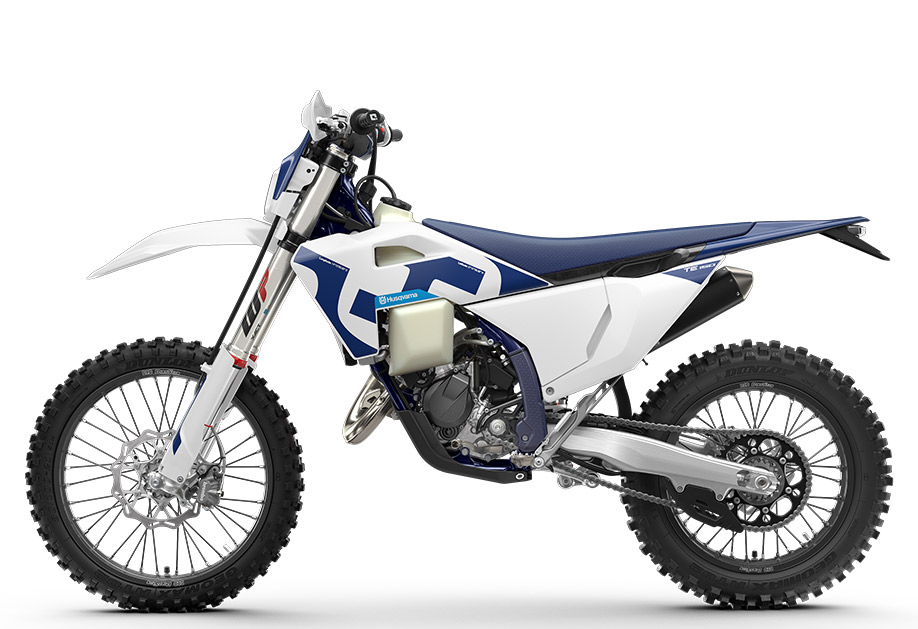

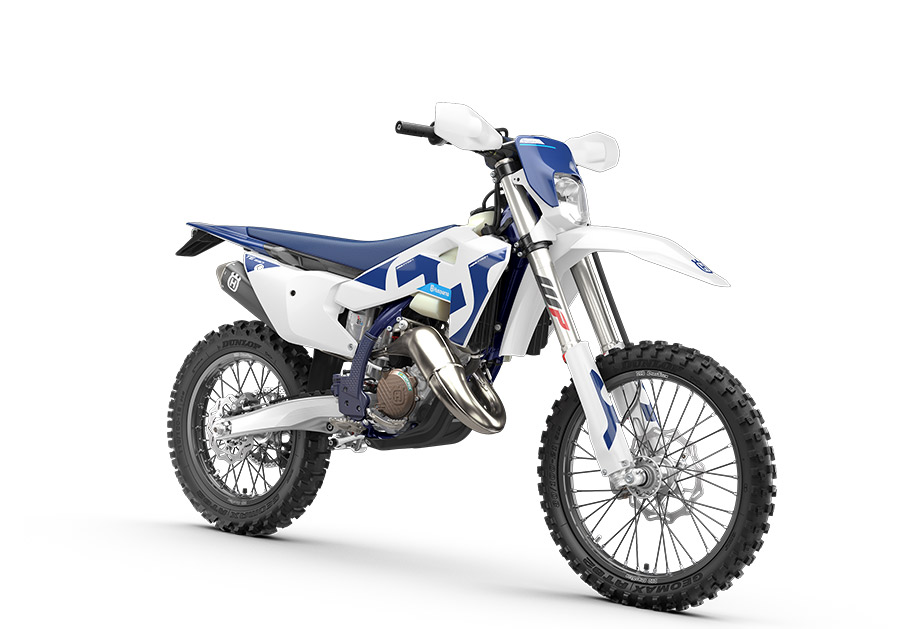

Powered by a lightweight engine fuelled by Throttle Body Injection (TBI), the TE 150 produces impressive torque for a small-capacity 2-stroke. Expertly assembled with the latest technical innovations to deliver best-in-class performance, this versatile machine is highly capable in the hands of both beginners and experienced racers alike. WP XACT suspension, combined with a perfectly balanced chassis, inspires confidence throughout every ride or special test. Completing the build of this popular model are the Brembo clutch and brake systems, a combined start/stop switch, Michelin tyres, and distinctive Swedish-inspired graphics.
