Technical Details
Engine
- Primary drive24:72
- Transmission5-speed
- Battery capacity2 Ah
- CoolingLiquid cooled
- Secondary gear ratio14:52
- StarterElectric starter
- Stroke57.5 mm
- Bore88 mm
- ClutchWet multi-disc DS clutch, Brembo hydraulics
- Compression ratio14.6
- Displacement349.7 cm³
- EMSKeihin EMS
- Design1-cylinder, 4-stroke engine
- Fuel-mixture generationKeihin EFI, throttle body 44 mm
Chassis
- Weight (without fuel)102.5 kg
- Tank capacity (approx.)7.2 l
- Wheelbase1490 mm
- Front brake disc diameter260 mm
- Rear brake disc diameter220 mm
- Front brakeDisc brake
- Rear brakeDisc brake
- Chain520, Non-sealed

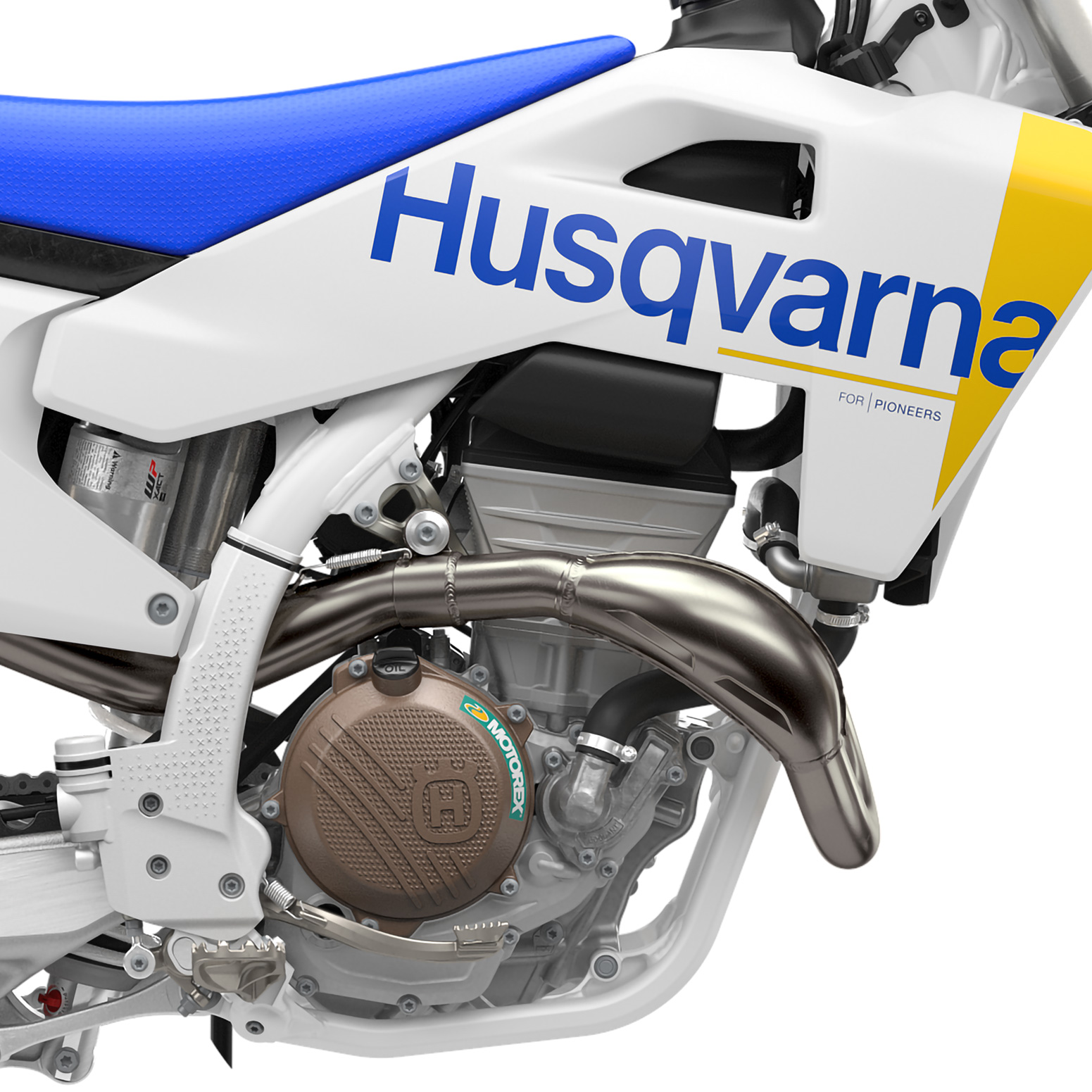

- Frame designCentral double-cradle-type 25CrMo4 steel
- Front suspensionWP XACT-USD, Ø 48 mm
- Ground clearance336 mm
- HandlebarPro Taper, aluminum Ø 28/22 mm
- Rear suspensionWP XACT Monoshock with linkage
- Seat height946 mm
- Silenceraluminum
- Steering head angle63.9 °

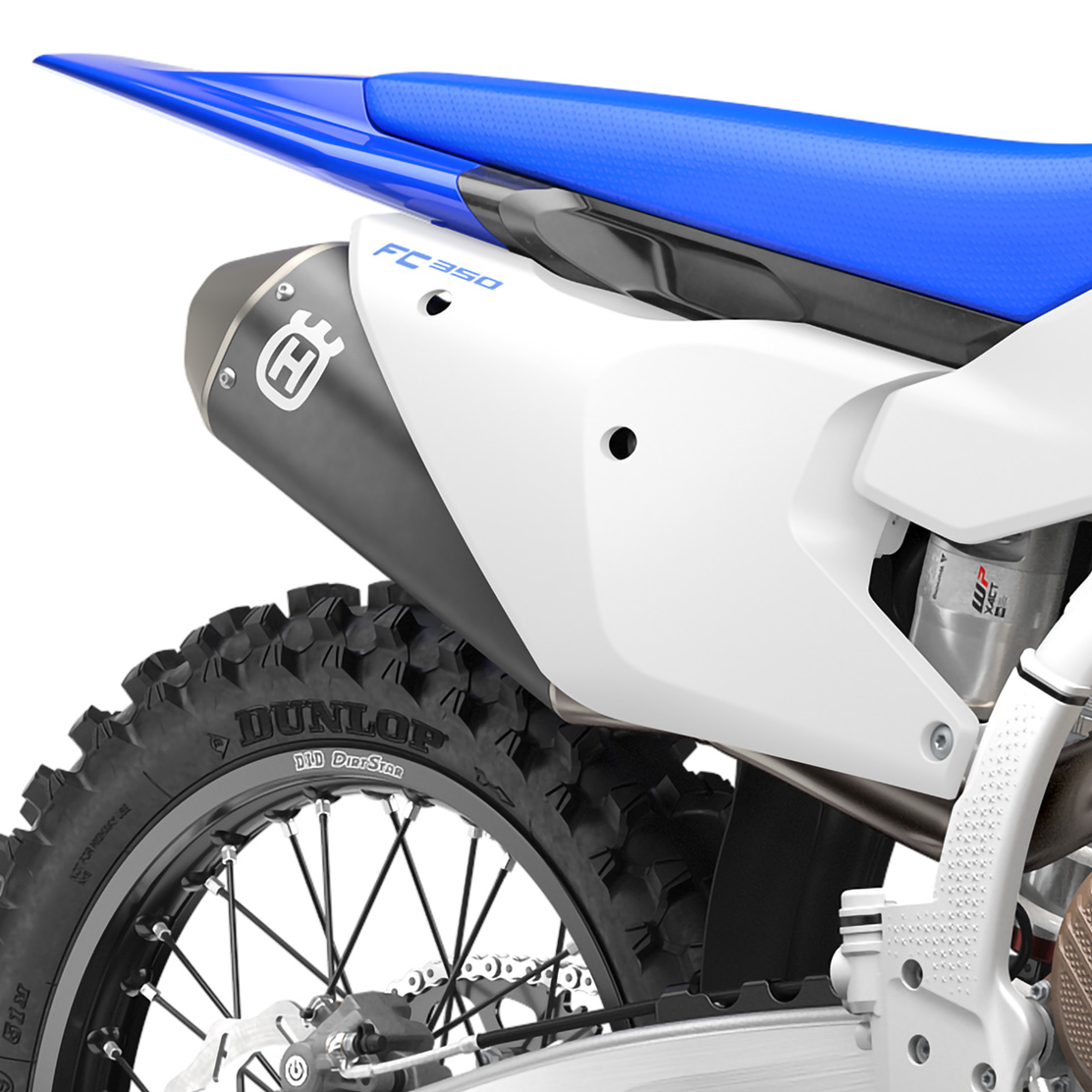

- Rear subframe designAluminum-reinforced polyamide
- Suspension travel (front)305 mm
- Suspension travel (rear)293 mm
- Tyre dimensions (front/rear)80/100; 110/90
- Wheels1.6 x 21″; 2.15 x 19″
- WheelsSpoked wheels with aluminum rims
- Wheelbase1490 ± 10 mm

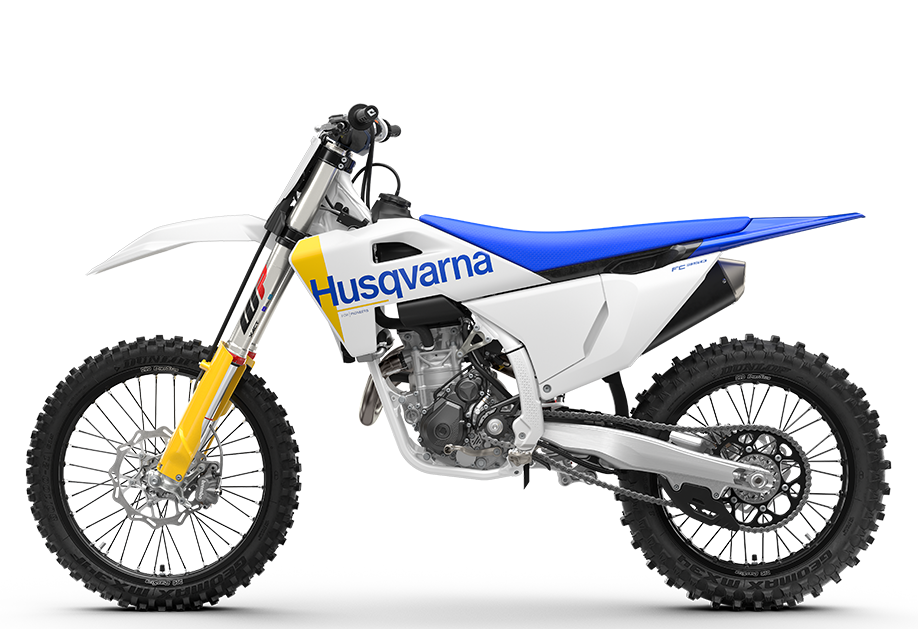

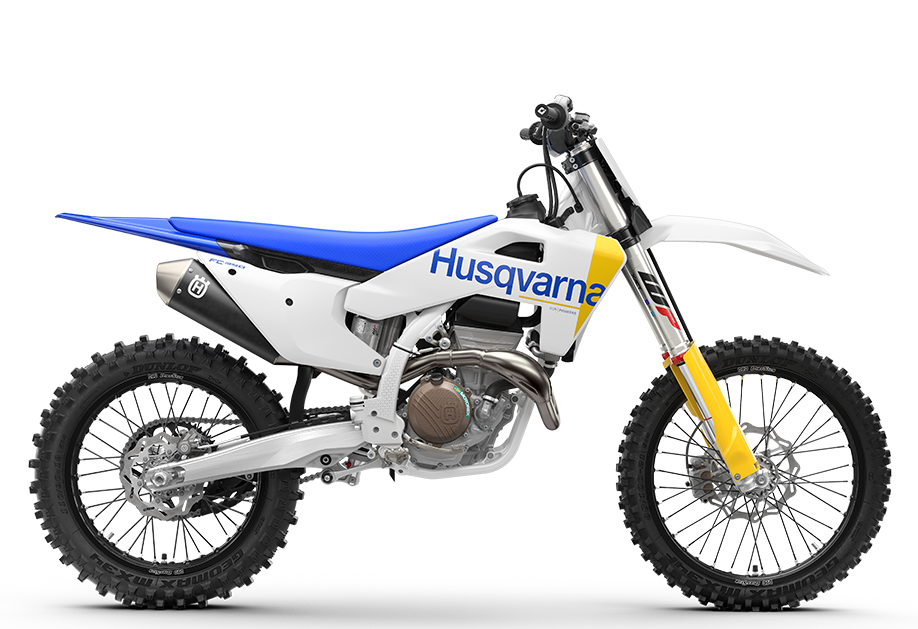

2027 Husqvarna FC 350 combines the agility of the FC 250 with a power-to-weight ratio to rival the FC 450. One of the most capable motocross bikes on the market.
