Technical Details
Engine
- Torque100 Nm
- Transmission6-speed
- Battery capacity10 Ah
- CoolingLiquid cooled with water/oil heat exchanger
- Secondary gear ratio16:45
- Power in KW77 kW
- StarterElectric starter
- Stroke68.8 mm
- Bore90.7 mm
- ClutchCable operated PASC slipper clutch
- CO2 emissions103 g/km
- Compression ratio13.5
- Displacement889 cm³
- EMSBosch EMS with RBW
- Design2-cylinder, 4-stroke, parallel twin
- Fuel consumption4.5 l/100 km
- Fuel-mixture generationDKK Dellorto (Throttle body 46mm)
- LubricationForced oil lubrication with 2 oil pumps
Chassis
- Weight (without fuel)214.5 kg
- Tank capacity (approx.)19 l
- Wheelbase1.529 mm
- Front brake disc diameter320 mm
- Rear brake disc diameter260 mm
- Front brake2 x 4-piston caliper, radially mounted, brake disc
- Rear brake2 piston floating caliper, brake disc
- Chain520 X-Ring
- Frame designChromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
- Front suspensionWP XPLOR-USD, Ø 48 mm
- Ground clearance270 mm
- Handlebaraluminum, tapered Ø 28/22 mm
- Rear suspensionWP XPLOR-Monoshock
- Seat height887/907 mm
- SilencerStainless steel primary and secondary silencer
- Steering head angle64.2 °
- Rear subframe designChromium-Molybdenum-Steel trellis, powder coated
- Suspension travel (front)240 mm
- Suspension travel (rear)240 mm
- Wheels2.50 x 21″; 4.50 x 18″
- WheelsSpoked wheels with aluminum tubeless rims
- Wheelbase1.529 ± 15 mm

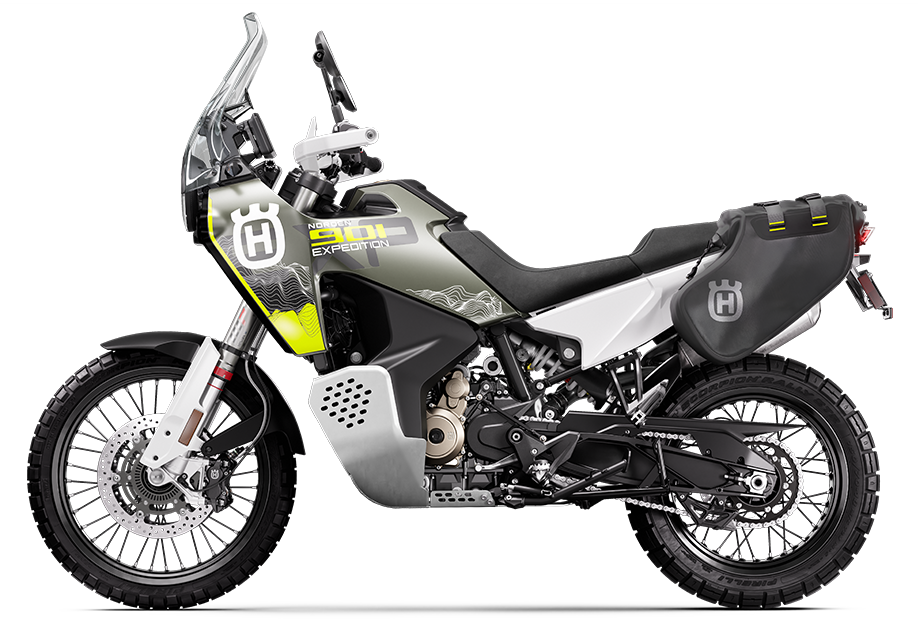

Husqvarna Norden 901 Expedition is an exceptional evolution of the pioneering Norden 901, the Norden 901 Expedition is assembled with all the Technical Accessories necessary to make it the ideal expedition motorcycle. Comfort is significantly boosted by the offroad-specific WP XPLOR suspension that offers longer travel, 240 mm front and rear, and is fully adjustable for a personalised set-up. A heated seat and grips make cold-climate riding comfortable at all times while a Touring Windshield reduces fatigue by deflecting wind around the rider. The Side Bag Set allows all the travel essentials to be securely stowed while the Connectivity Unit in front of the handlebars provides accurate directions thanks to the Turn-by-Turn+ navigation. Designed and built to reach the most remote destinations, this highly reliable and technically enhanced touring machine is characterised by the distinctive colour scheme applied to its ergonomic bodywork. Built for pioneers, your next journey starts with the Norden 901 Expedition.
